HaxOS #2 OC 0.5.9 + i9-9900k + z390

Introduction

Originally I wasn’t planning on upgrading so soon, but one of my siblings became in need of a computer so I had decided to do an upgrade of a few parts. Check out my previous build for hardware specs and some basic troubleshooting.

Took me about 2 hours (with dinner in between) to follow the Opencore Guide to setup the USB and boot into MacOS. I didn’t need to re-install MacOS since I used my existing drive and only had to update the config.plist and kexts. Also found someone with the same motherboard and followed their BIOS configuration

Honourable mention

A HUGE thank you to CrytoTV for helping with the entire build process! Check out the build video link and also visit his channel for live streams of games, tech, and more!

Hardware

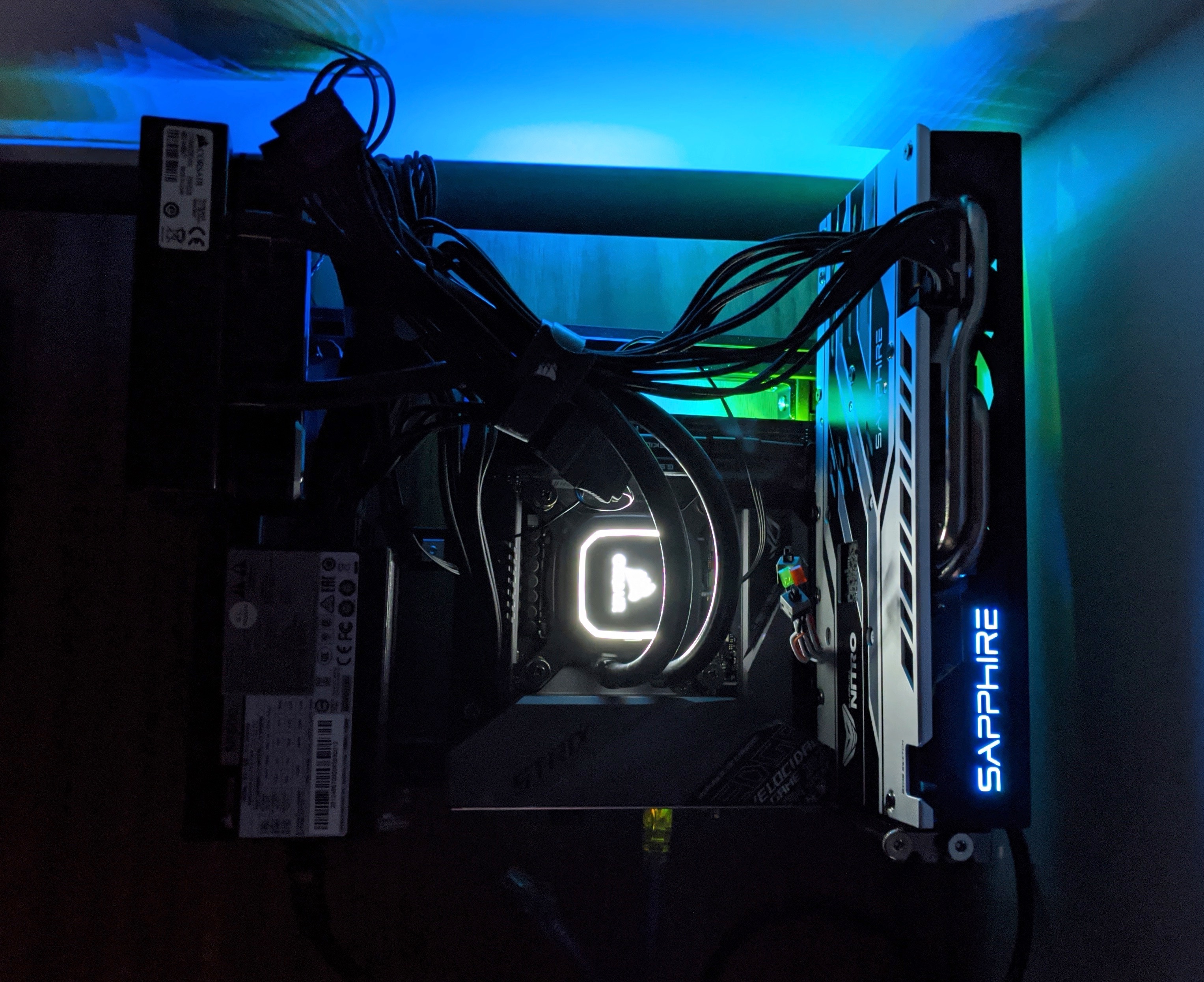

Currently setup on a testbench until the case I am waiting for is available for purchase. I did NOT replace my wireless card as I didn’t purchase a card that would fit with the Asus casing. I do however have bluetooth working with the built in Intel Wireless 9560 card.

https://ca.pcpartpicker.com/list/zJfWvW

          [CPU] [Intel Core i9-9900K 3.6 GHz 8-Core Processor]
   [CPU Cooler] [Corsair H60 (2018) 57.2 CFM Liquid CPU Cooler]
  [Motherboard] [Asus ROG STRIX Z390-I GAMING Mini ITX LGA1151 Motherboard]
       [Memory] [G.Skill Ripjaws V 64 GB (2 x 32 GB) DDR4-3600 CL18 Memory]
      [Storage] [Samsung 970 Evo 1 TB M.2-2280 NVME Solid State Drive]
   [Video Card] [Sapphire Radeon RX 580 8 GB NITRO+ Video Card]
 [Power Supply] [Corsair SF 600 W 80+ Platinum Certified Fully Modular SFX Power Supply]

What Works

• Sleep / Wake
• Bluetooth
• iServices
• Virtualization (Bluestacks/Docker)

What Does Not

• Airdrop
• Continuity

Issue encountered

No en0 interface

My LAN interface ended up being a en6 interface and since I didn’t replace my WiFi card, no working WiFi adapter which is typically en0 on MacOS. Followed the Fixing En0 guide and was back up and running upon the next reboot.

Major kudo’s to HackSlav and the other contributors to writing up the documentation.

EFI

EFI Here

Note: my serial #’s have been removed

Folder structure

/EFI/
├── APPLE
│   └── EXTENSIONS
│       └── Firmware.scap
├── BOOT
│   └── BOOTx64.efi
└── OC
    ├── ACPI
    │   ├── SSDT-AWAC.aml
    │   ├── SSDT-EC.aml
    │   ├── SSDT-PLUG.aml
    │   ├── SSDT-PMC.aml
    │   └── SSDT-USBX.aml
    ├── Bootstrap
    │   └── Bootstrap.efi
    ├── Drivers
    │   ├── AudioDxe.efi
    │   ├── CrScreenshotDxe.efi
    │   ├── HfsPlus.efi
    │   └── OpenRuntime.efi
    ├── Kexts
    │   ├── AppleALC.kext
    │   ├── IntelBluetoothFirmware.kext
    │   ├── IntelMausiEthernet.kext
    │   ├── Lilu.kext
    │   ├── NVMeFix.kext
    │   ├── SMCLightSensor.kext
    │   ├── SMCProcessor.kext
    │   ├── SMCSuperIO.kext
    │   ├── USBMap.kext
    │   ├── VirtualSMC.kext
    │   └── WhateverGreen.kext
    ├── OpenCore.efi
    ├── Resources
    │   ├── Audio
    │   ├── Font
    │   ├── Image
    │   └── Label
    ├── Tools
    │   └── OpenShell.efi
    └── config.plist

Helpful Links/Resources

• GenSMBIOS - Corp’s script to generate SMBIOS, serial #, etc.
• OpenCore Vanilla Guide written by u/dracoflar based on Corp’s Guide
• ProperTree - Corp’s application to edit OpenCore config.plist with EXTREME ease
• SSDTime - Corp’s Script to create SSDT’s
• USBMap - Corp’s Script to create SSDT and Map the USB Ports (ensuring under the 15 port limit)
• The Reddit page (r/hackintosh) as well as the Discord channel (link in Reddit page) has been very helpful.
